F&W CJ101B201AB Multi-Stage Centrifugal Pump 2HP; Low Lead Brass Impeller
Description
F&W CJ101B201AB Multi-Stage Centrifugal Pump 2HP; Low Lead Brass Impeller - This multi-stage pump is for suction lifts up to 25' (8 m). It may be used with the following applications: booster service, water circulation, liquid transfer, cooling systems, jockey pump service and general service in farm, commercial and industry applications. This pump has a 1 year limited warranty.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandF&W
- Amps High Speed25
- Shipping Dimensions34 x 11.5 x 11.5 inch
- Amps Low Speed12.5
- ApplicationPool
- Commercial, Residential, or ProfessionalCommercial
- Each Product Weight76.25 pound
- Flow Rate Max51 gal/min
- Master Carton Quantity1
- Max Liquid Temperature200 degrees Fahrenheit
- Max Working Pressure70 pounds per square inch
- Minimum Sell Quantity1
- Pallet Quantity1
- PhaseSingle
- Service Factor1.25
- Temperature Rating Max149 degrees Fahrenheit
- Thrust HP4
- Duty CycleContinuous
- UPC Code054757085476

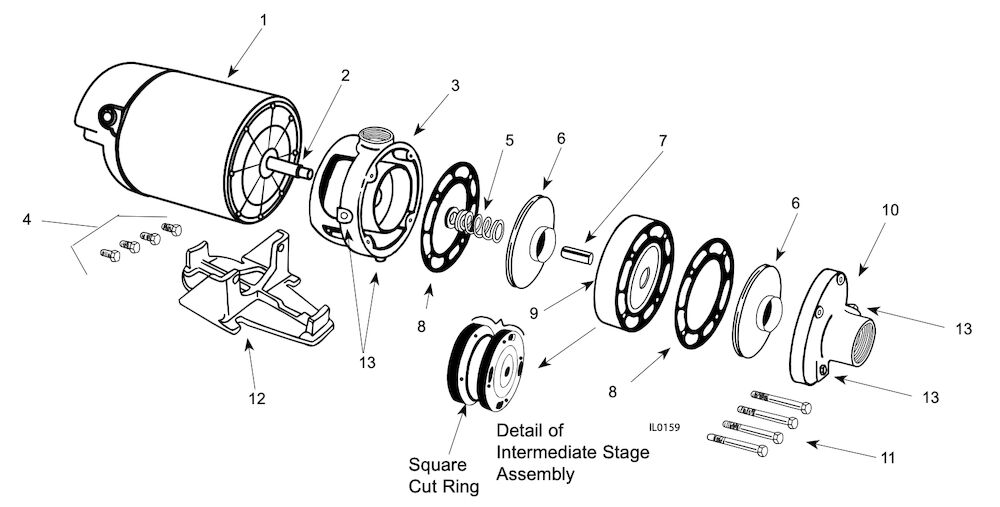

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
98J120
Motor, Nema J - 1PH
Product #:
Mfg #: 98J120
1
1
98J320
Motor, Nema J, 3PH
Product #:
Mfg #: 98J320
-
-
021301R
Motor Cover w/ Screws
Product #:
Mfg #: 021301R
-
-
21302
Screws, Cover
Product #:
Mfg #: 21302
Not Shown
Not Shown
126905
Slinger Washer
Product #:
Mfg #: 126905
2
2
135279A
Shaft
Product #:
Mfg #: 135279A
3
5
6
6
126900
Impeller, Brass
Product #:
Mfg #: 126900
6
6
139180
Impeller, Thermoplastic
Product #:
Mfg #: 139180
7
7
133380
Spacer, Shaft
Product #:
Mfg #: 133380
8
9
9
9
23405
SIB-67-1031
Imtermediate Stage Assy - Plastic
Product #: SIB-67-1031
Mfg #: 23405
Not Shown
Not Shown
130957
Suction Clearance Ring
Product #:
Mfg #: 130957
