Pentair EC-LA01N Booster Pump 3/4HP 115/230V
EA
Description
The Booster Pump combines ultimate performance with efficiency for pressure-side pool cleaner ease. The 3/4HP Booster Pump is made from durable, corrosion-proof materials, and provides 50 psi at 12 GPM.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandPentair
- Amps High Speed13
- Shipping Dimensions16 x 9.25 x 10 inch
- Amps Low Speed6.5
- ApplicationPool
- ColorBlack
- Each Product Weight32 pound
- Frequency Rating (Hz)60
- Horsepower0.75 horse power
- IncludesHose and adapters
- Minimum Sell Quantity1
- Pallet Quantity24
- Port Size 10.75 inch
- Port Size 1 FITNPT
- Product Height11.5 inch
- Product Width9 inch
- Service Factor1.5
- Service Factor HP1.13
- Voltage115V, 230V
- Warranty - General1 years
- UPC Code788379500245

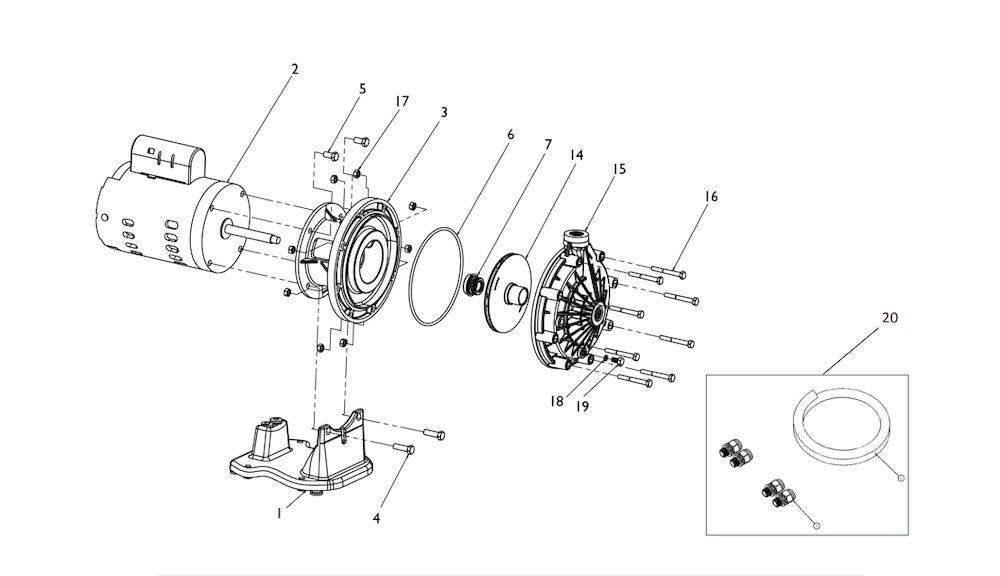

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
LA41
PAC-101-1133
Pump stand 99, complete with rubber grommets
Product #: PAC-101-1133
Mfg #: LA41
2
2
LA10NS
Motor, 230/115 V, 1 ph, 60 hz, 6.5/13 A
Product #:
Mfg #: LA10NS
2
3
4
4
LA136
Bolt 3/8-16 x 1-1/4 in., 2 req.
Product #:
Mfg #: LA136
5
5
LA135
Bolt 3/8-16 x 3/4 in., 2 req.
Product #:
Mfg #: LA135
6
7
7
071734S
PUR-101-1734
Product #: PUR-101-1734
Mfg #: 071734S
7
7
7
7
P55
POL-201-3297
Product #: POL-201-3297
Mfg #: P55
7
7
7
U109-136SS
STA-101-5156
CFA and CF6 Buna Shaft Seal 5/8"
Product #: STA-101-5156
Mfg #: U109-136SS
7
7
SPX1720KA
HAY-101-6305
1HP/1.5HP PowerFlo II Seal Assembly
Product #: HAY-101-6305
Mfg #: SPX1720KA
14
Wholegoods
There are no wholegoods available.
