Hayward

21" Pro Series Sand Filter System with Twist Lock Cord

Product #:HAY-05-210

Mfg. Part #:S210T932STL

  • This product is obsolete.
  • The superceded product was not found.

Hayward ProSeries S210T932STL 21" Sand Filter System with Twist Lock Cord

Hayward

21" Pro Series Sand Filter System with Twist Lock Cord

Product #:HAY-05-210

Mfg. Part #:S210T932STL

Description

Hayward ProSeries S210T932STL 21" Sand Filter System with Twist Lock Cord. Pro Series sand systems are designed and equipped to offer the ideal combination of energy efficiency and outstanding water clarity. A broad selection of filter sizes, pumps, and accessories allows you to choose and merchandise the system(s) that best suit your above-ground pool program.

Documents

Feature Bullets

  • Exclusive full-flow 360 deg self-cleaning laterals provide energy-efficient operation and thorough backwashing
  • 7-position VariFlo™ control valve makes changing filter function quick and easy
  • Corrosion-proof construction
  • Reduced energy costs
  • Easy-access assembly makes service simple
  • One-piece, deluxe base

    • Branch Availability

    content loaded

    Specifications

    • BrandHayward
    • ApplicationAbove Ground, Inground, Pool
    • Shipping Dimensions32 x 20.5 x 30.5 inch
    • Each Product Weight70 pound
    • Filtration Area2.2 square feet
    • Green or Energy Efficient ProductTrue
    • Master Carton Quantity1
    • Maximum Working Pressure50 pounds per square inch
    • Minimum Sell Quantity1
    • Pallet Quantity1
    • ChannelNone
    • Filter Control Valve7-Position, Top-Mount Vari-Flo™ Valve with Lever-Action Handle
    • Filter Tank Molding TypeMolded Polymeric
    • Filtration Rate44 GPM/ft2
    • Mounting BaseInjection-Molded Thermoplastic
    • Pump TypePowerFlo Matrix
    • Side Clearance18 inch
    • Vertical Clearance18 inch
    • UPC Code0610377097093

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

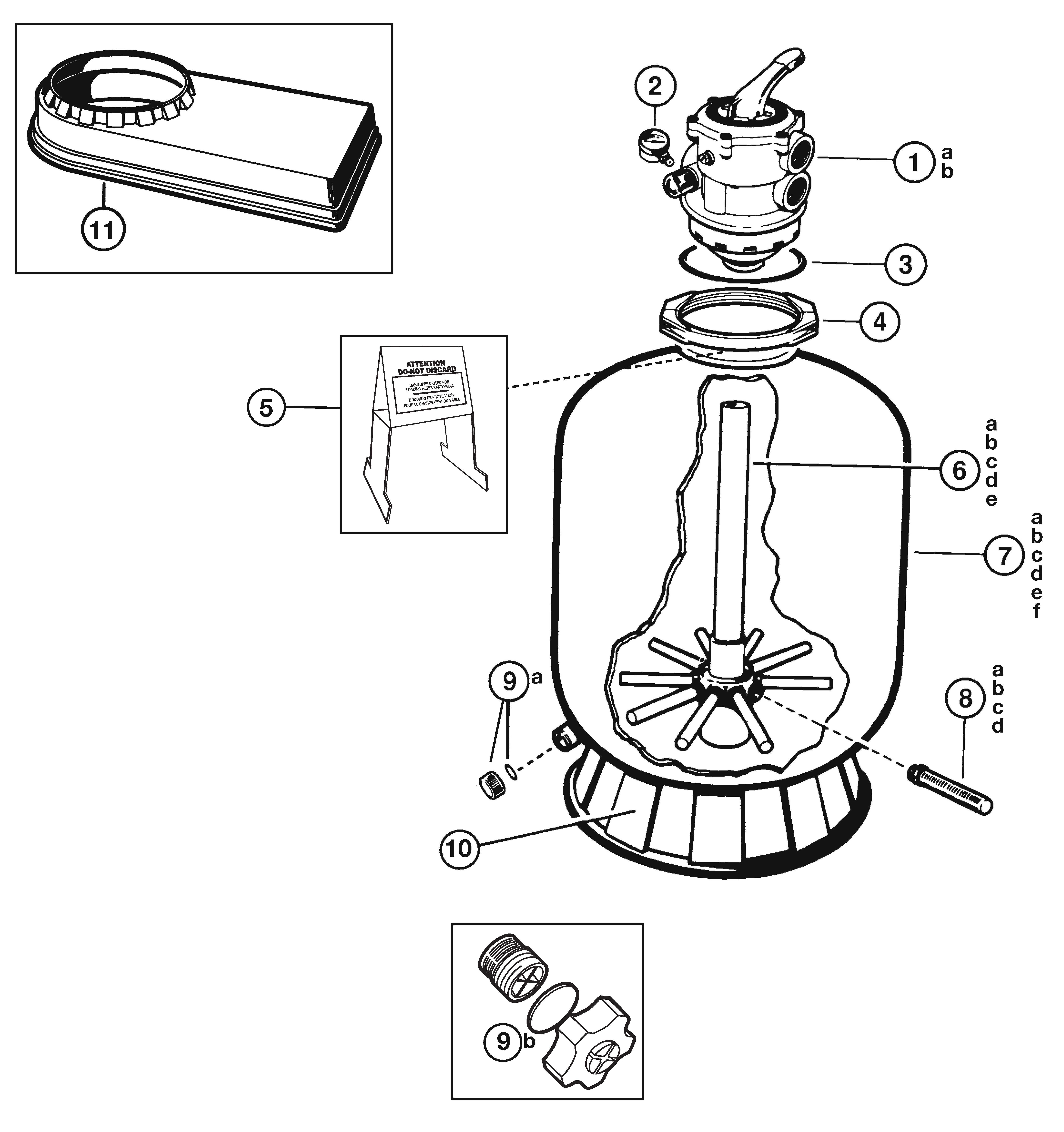

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    SX180K
    HAY-051-2175
    ProSeries System Base with Screws and Washers
    Product #: HAY-051-2175
    Mfg #: SX180K
    not shown
    not shown
    EC1155
    HAY-051-1875
    1 1/2" Suction and Discharge Hose
    Product #: HAY-051-1875
    Mfg #: EC1155
    1
    1
    VLX4001A
    HAY-051-4001
    VL Series Stand Pipe and Underdrain Assembly
    Product #: HAY-051-4001
    Mfg #: VLX4001A
    1
    1
    SP0714T
    HAY-06-271
    1 1/2" Black Vari-Flo Top Mount Multiport Valve
    Product #: HAY-06-271
    Mfg #: SP0714T
    1
    1
    SP071620T
    HAY-06-207
    2" Multiport Valve with Clamp and O-Ring
    Product #: HAY-06-207
    Mfg #: SP071620T
    1
    1
    SP071621
    HAY-06-243
    2" Black Multiport Valve
    Product #: HAY-06-243
    Mfg #: SP071621
    2
    2
    VLX4002A
    HAY-051-4002
    VL Series Clamp with Hardware and Filter O-Ring
    Product #: HAY-051-4002
    Mfg #: VLX4002A
    2
    2
    ECX270861
    HAY-051-1858
    Bottom Mount Pressure Gauge
    Product #: HAY-051-1858
    Mfg #: ECX270861
    2
    2
    83060BU
    SPG-06-1005
    2" Steel Pressure Gauge 0.25" 0-60 PSI Bottom Mount
    Product #: SPG-06-1005
    Mfg #: 83060BU
    2
    2
    K551WBX
    KOK-60-0003
    K551WBX SM METAL PRESSURE GAUGE
    Product #: KOK-60-0003
    Mfg #: K551WBX
    2
    2
    30B3000
    BAK-051-1534
    1.4"NPT 0 - 50PSI BOTTOM MOUNT PRESSURE GAUGE
    Product #: BAK-051-1534
    Mfg #: 30B3000
    2
    2
    830-3000
    WWP-60-3000
    830-3000 BTM MOUNT PLASTIC PRESSURE GAUGE
    Product #: WWP-60-3000
    Mfg #: 830-3000
    2
    2
    R0556900
    TLD-051-5050
    Pressure Gauge
    Product #: TLD-051-5050
    Mfg #: R0556900
    3
    3
    VLX4003A
    HAY-051-4003
    VL Series Multi-Port Valve
    Product #: HAY-051-4003
    Mfg #: VLX4003A
    3
    3
    GMX600F
    HAY-051-1867
    ProSeries™ Valve/Tank O-Ring
    Product #: HAY-051-1867
    Mfg #: GMX600F

    Wholegoods

    There are no wholegoods available.
