SPECK PUMPS

21-80/33 BS Self-Priming Pump with Trap 4HP

Product #:SPK-10-2743

Mfg. Part #:SA104-1400F-0BS


Speck Pumps SA104-1400F-0BS 21-80/33 BS Self-Priming Pump with Trap 4HP; 208-230V

SPECK PUMPS

21-80/33 BS Self-Priming Pump with Trap 4HP

Product #:SPK-10-2743

Mfg. Part #:SA104-1400F-0BS

Description

The Speck Model 21-80 BS is a high efficiency plastic pool pump. The Model 21-80 BS is ideally suited for commercial vacuum and sand filters, hydrotherapy, swim spas, waterfalls, water slides, and vanishing edge pool applications. This pump design provides maximum flow at low head and has 250 cubic inch all plastic strainer tank, and is self-priming up to 4 feet.

Documents

Feature Bullets

  • Comes complete with our unique mechanical shaft seal that allows the pump to run dry for up to one hour
  • The pump can be used for pool water with a salt concentration of up to 5000 ppm
  • Pump parts are made of 100% recyclable plastic
  • Non-corrosive, chemical/UV resistant, and can withstand temperatures of up to 175 deg F
  • Dielectric shaft sleeve that provides absolute separation between pool water and electric parts
  • All models are equipped with 4 Inch quick disconnect unions
  • Heavy duty 1081 E-plus(R)/extreme-E(TM) energy efficient pool motor with large 56 frame
  • Motor is easy to remove without disturbing the plumbing, reusable o-rings throughout
  • Two year warranty on the motor and all pump parts, including normal wear of the mechanical seal
  • Every pump is performance tested before leaving the Speck factory

    • Branch Availability

    content loaded

    Specifications

    • BrandSPECK PUMPS
    • ApplicationPool
    • Shipping Dimensions30 x 32 x 17 inch
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight88 pound
    • MaterialPlastic
    • Minimum Sell Quantity1
    • Pallet Quantity16
    • UPC Code840182101603

    WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

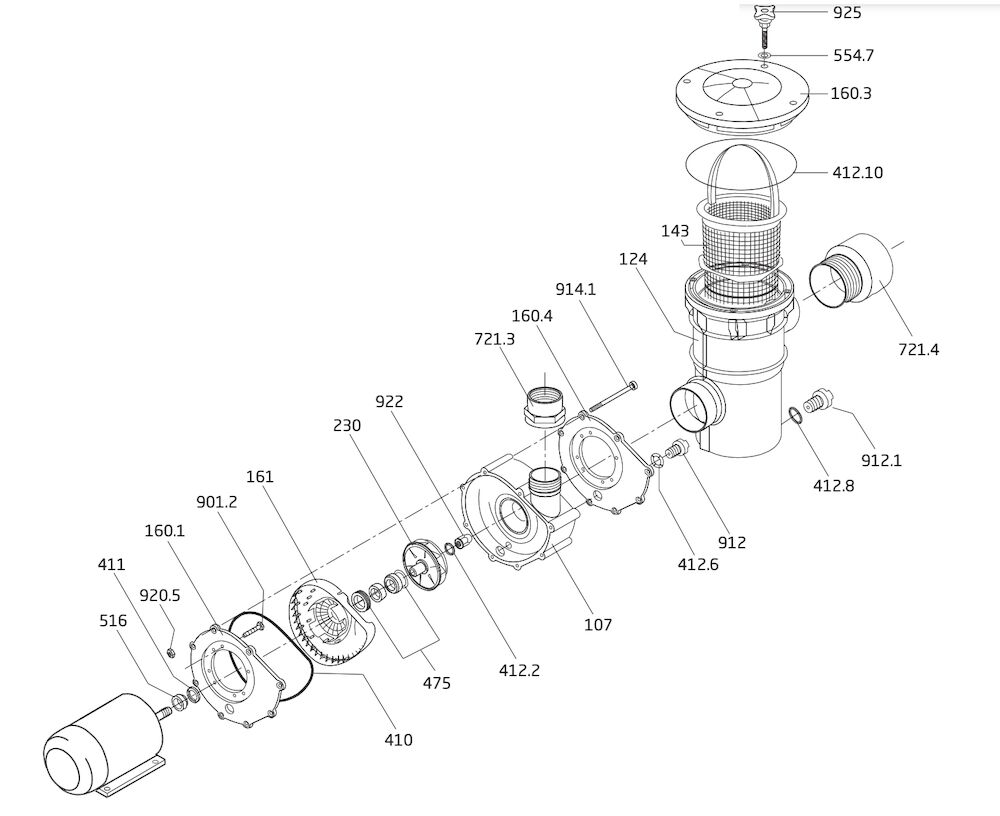

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    107
    107
    2923110726
    Casing
    Product #:
    Mfg #: 2923110726
    124
    124
    2920912403
    SPK-101-2611
    21-80BS STRAINER TANK
    Product #: SPK-101-2611
    Mfg #: 2920912403
    143
    143
    2920914300
    SPK-101-2731
    XL 433/ 21-80BS TRAP STRAINER BASKET
    Product #: SPK-101-2731
    Mfg #: 2920914300
    160.1
    160.1
    2923116010
    Aluminum Flange - Motor
    Product #:
    Mfg #: 2923116010
    160.3
    160.3
    2920916000
    Lid - Clear
    Product #:
    Mfg #: 2920916000
    160.4
    160.4
    2324110726
    Aluminum Flange Casing
    Product #:
    Mfg #: 2324110726
    161
    161
    2923116100
    SPK-101-2700
    21-80/BS SEAL HOUSING
    Product #: SPK-101-2700
    Mfg #: 2923116100
    230
    230
    2923223014
    SPK-101-2688
    4HP 1.25SQF 21-80 5V IMPELLER
    Product #: SPK-101-2688
    Mfg #: 2923223014
    410
    410
    2923141010
    SPK-101-3116
    21-80 PUMP CASING GASKET/ SEAL
    Product #: SPK-101-3116
    Mfg #: 2923141010
    411
    411
    2923141240
    Shaft Washer 14/22 IT 400
    Product #:
    Mfg #: 2923141240
    412.1
    412.1
    2920941210
    SPK-101-1210
    21-80BS 185x6MM LID ORING
    Product #: SPK-101-1210
    Mfg #: 2920941210
    412.2
    412.2
    2923541229
    SPK-101-1420
    O-Ring - Shaft 16.9 x 2.75mm Viton
    Product #: SPK-101-1420
    Mfg #: 2923541229
    412.6
    412.6
    2923541220
    SPK-101-2687
    CASING DRAIN PLUG ORING
    Product #: SPK-101-2687
    Mfg #: 2923541220
    412.8
    412.8
    2923241231
    SPK-101-2616
    24mm x 3.5mm Drain Plug O-Ring for 21-80BS Strainer Tank
    Product #: SPK-101-2616
    Mfg #: 2923241231
    433
    433
    2920343310
    SPK-101-2675
    Complete Mechanical Shaft Seal
    Product #: SPK-101-2675
    Mfg #: 2920343310
