Hayward
16" ProSeries Sand Filter System with 1HP Matrix Pump, Hose, Twist Lock Cord
Product #:HAY-05-7001
Mfg. Part #:S166T92STL

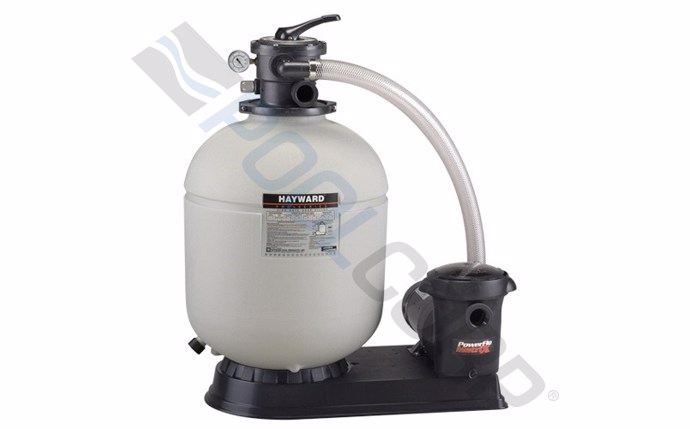

Hayward ProSeries S166T92STL 16" Sand Filter System with 1HP Matrix Pump, Hose and Twist Lock Cord
Hayward
16" ProSeries Sand Filter System with 1HP Matrix Pump, Hose, Twist Lock Cord
Product #:HAY-05-7001
Mfg. Part #:S166T92STL
Description
Hayward® ProSeries S166T92STL 16" Sand Filter System with 1HP Matrix Pump, Hose and Twist Lock Cord. Pro Series sand systems are designed and equipped to offer the ideal combination of energy efficiency and outstanding water clarity. A broad selection of filter sizes, pumps, and accessories allows you to choose and merchandise the system(s) that best suit your above-ground pool program.
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationAbove Ground, Pool
- Shipping Dimensions30 x 19 x 27.5 inch
- Commercial, Residential, or ProfessionalCommercial
- Cord TypeTwist Lock
- Each Product Weight59 pound
- Filtration Area1.4 square feet
- Green or Energy Efficient ProductTrue
- Horsepower1 horse power
- Includes6 ft Power Cord Twist Lock Plug and 7-Position Top Mount Valve
- Master Carton Quantity1
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Pallet Quantity12
- Tank Diameter16 inch
- Filter Control ValveSP0714T - 7-position Vari-Flo valve provides maximum flow at low pressure drop
- Filter Tank Molding TypeMolded Polymeric
- Maximum Flow Rate30 gal/min
- Mounting BaseInjection-Molded Thermoplastic
- Mounting TypeTop
- Pump TypePowerFlo Matrix
- Side Clearance18 inch
- Tank ColorGray
- Vertical Clearance18 inch
- UPC Code0610377855518
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

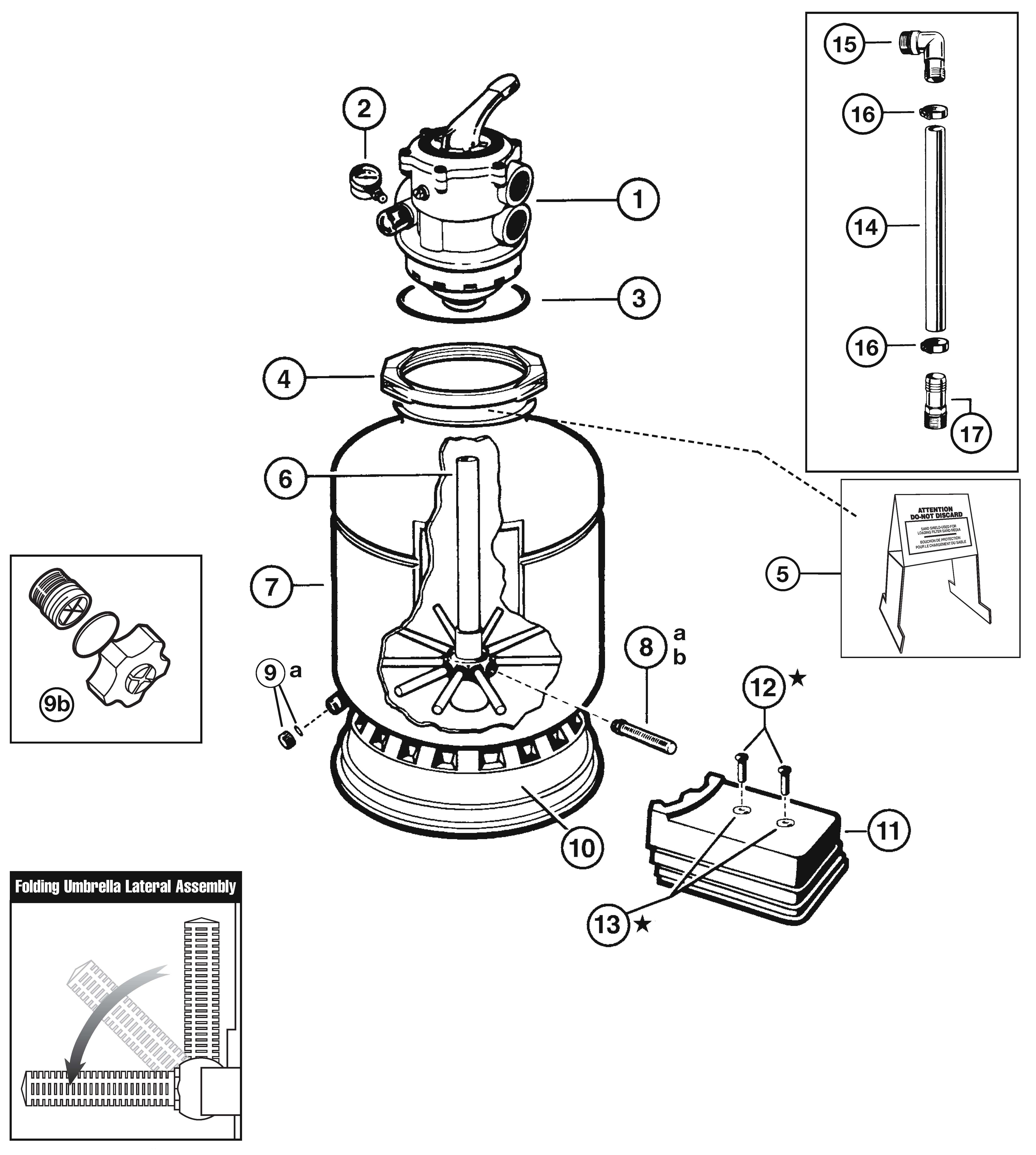

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
SP071113
HAY-06-221
Vari-Flo Control Valve Assembly
Product #: HAY-06-221
Mfg #: SP071113
Notes:
Qty 12
2
ECX27081
HAY-051-1857
Pressure Gauge
Product #: HAY-051-1857
Mfg #: ECX27081
Notes:
Qty 13
4
4
GMX600NS
HAY-061-6846
Flange Clamp (Valve-Tank)
Product #: HAY-061-6846
Mfg #: GMX600NS
Notes:
Qty 14
5
6
6
SX164DA
HAY-051-6841
Product #: HAY-051-6841
Mfg #: SX164DA
Notes:
Qty 17
7
SX164AA1
HAY-051-8244
Filter Tank with Skirt, Complete Lateral Assembly
Product #: HAY-051-8244
Mfg #: SX164AA1
Notes:
Qty 18
8
SX200Q
HAY-051-2197
Lateral
Product #: HAY-051-2197
Mfg #: SX200Q
Notes:
Qty 109
9
SX180G
HAY-051-2182
Gasket
Product #: HAY-051-2182
Mfg #: SX180G
Notes:
Qty 110
10
SX180H
Drain Cap
Product #:
Mfg #: SX180H
Notes:
Qty 111
11
SX164B
HAY-051-8245
Product #: HAY-051-8245
Mfg #: SX164B
Notes:
Qty 112
13
13
ECX1108A
HAY-101-1405
Product #: HAY-101-1405
Mfg #: ECX1108A
Notes:
Qty 214*
14*
SX160Z5
HAY-061-6844
Product #: HAY-061-6844
Mfg #: SX160Z5
Notes:
Qty 1 *Furnished with PAK or System onlyWholegoods
