Hayward Star-Clear™ Plus W3C1200 120 Sq Ft Cartridge Filter 50 psi 120 gpm 2" FIP
Description
Hayward Star-Clear™ Plus W3C1200 120 Sq Ft Cartridge Filter 50 psi 120 gpm 2" FIP. StarClear Plus single element cartridge filters offer excellent quality, value and convenience.
Documents
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandHayward
- ApplicationInground, Pool, Spa
- Shipping Dimensions13.8 x 13.8 x 37.7 inch
- Cartridges Required1
- ChannelPool Equipmenrt
- Design Flow Rate120 gal/min
- Each Product Weight30 pound
- Filter Tank Molding TypeInjection-Molded
- Filtration Area120 square feet
- Green or Energy Efficient ProductTrue
- Master Carton Quantity1
- Maximum Flow Rate120 gal/min
- Maximum Working Pressure50 pounds per square inch
- Minimum Sell Quantity1
- Pallet Quantity18
- Pipe Size2 inch
- Plumbing Size2 inch
- Plumbing Size FITNPT
- Product Height36 inch
- Product Weight30 pound
- Product Width13.375 inch
- Side Clearance18 inch
- Tank ColorBeige, Gray
- Turnover 10hrs72000 gallon
- Turnover 8hrs57600 gallon
- Valve Plumbing Size2 inch
- Vertical Clearance25 inch
- UPC Code0610377387828
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

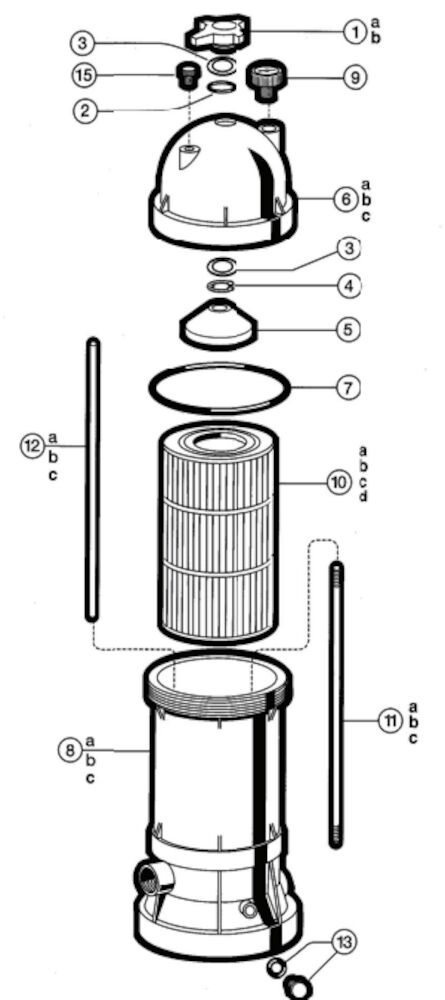

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
-
-
2
2
2
2
2
2
35505-1223
SWQ-061-3955
35505-1223 2" SM MPV ORING KIT
Product #: SWQ-061-3955
Mfg #: 35505-1223
2
2
2
57006800
AMP-251-1339
Product #: AMP-251-1339
Mfg #: 57006800
2
3
3
CX900W
HAY-051-1741
CX900W STARCLEAR PLUS WASHER
Product #: HAY-051-1741
Mfg #: CX900W
3
3
3
3
G-363-9
ALA-601-7355
G-363-9 GASKET AMP 501407/HAY SP710Z16
Product #: ALA-601-7355
Mfg #: G-363-9
