Daldorado

SILENTFlow 4" Straight Grate 45 Degree Inside Corner White

Product #:DDO-25-1164

Mfg. Part #:DPAS-04CN-45IN-WT

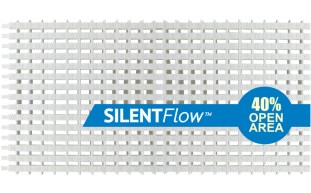

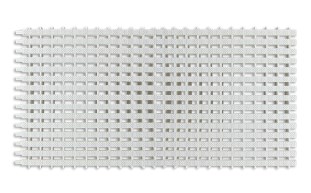

Daldorado SILENTFlow DPAS-04CN-45IN-WT 4" Straight Grate, 45 Degree Inside Corner, White

Daldorado

SILENTFlow 4" Straight Grate 45 Degree Inside Corner White

Product #:DDO-25-1164

Mfg. Part #:DPAS-04CN-45IN-WT

EA

Description

Daldorado’s SILENTFlow™ commercial pool grating system is the most superior evolution in parallel grating. All grating features the highest flow rate with an unprecedented 40% open area and whisper quiet noise reduction. All corners are custom manufactured by Daldorado and strengthened for inside-outside corners per project design requirements. Fully warranted by Daldorado for manufacturers defects for 10-years.

Documents

Feature Bullets

  • Safety Tested and Certified to Section 3 of ANSI/APSP-16 (BS EN 13451-1 2020) for finger and limb Entrapment featuring a gap opening of only 8mm.
  • Quality PVC materials Tested and Certified to NSF/ANSI/CAN 50 2020.
  • Safety tested and certified to AS 4586-2013 Classification C For Wet-Barefoot Inclining Platform (Ramp) test for Swimming pool ramps and stairs leading to water, swimming pool surrounds and communal shower rooms, communal Changing Rooms.
  • Strength tested to ANSI/AS 3996 class A for covers and grates with loads exceeding 10kN (2,248lb).
  • Available in three standard colors ~ white, bone & gray. Additional colors available with a PO quantity guarantee and minimum 3-month lead time on request.
  • UV Exposure in accordance with ATSM G154 for UV resistance and 70% strength requirements of Section 3 of ANSI/APSP-16
  • Vertical load and deformation test of Section 3 of ANSI/APSP-16
  • Pull load requirements of Section 3 of ANSI/APSP-16
  • Fully warranted by Daldorado for 10 years against manufacturer defects with a focus on offering the best customer service in the industry.

    • Branch Availability

    content loaded

    Specifications

    • BrandDaldorado
    • ApplicationPool Deck
    • Shipping Dimensions12 x 12 x 2 inch
    • ColorWhite
    • MaterialPVC or Polyvinyl Chloride
    • Standards ApprovalsNSF Certified, ANSI Certified, APSP Certified, ASTM Certified
    • ChannelNone
    • Commercial, Residential, or ProfessionalCommercial
    • Each Product Weight2 pound
    • Minimum Sell Quantity1
    • Pallet Quantity300
    • Warranty - General10 years
