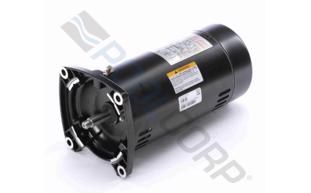

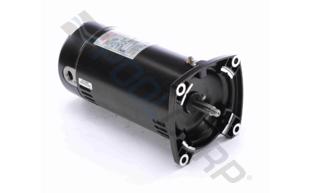

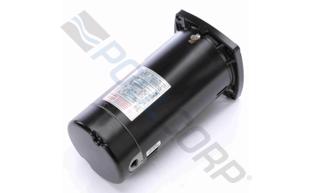

Century® SQ1072 Two-Compartment Pool Filter Motor; 0.75 HP, 3450 RPM, 115/230 V, 48Y, Threaded Shaft, Square Flange
Description
This ODP Square Flange Pool Filter Motor 0.75HP 115/230V is a replacement part that can be relied upon when it matters the most. This motor is made from high-quality parts and materials for long-term performance.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions18 x 9.5 x 9 inch
- Amps High Speed15.3
- Amps Low Speed7.6
- ApplicationPool
- Bearing TypeSealed Ball
- ColorBlack
- Duty CycleContinuous
- Each Product Weight21.6 pound
- Efficiency GroupStandard
- Frequency Rating (Hz)60
- Horsepower0.75 horse power
- Insulation ClassB
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size48Y
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed1-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity40
- PhaseSingle
- RPMs Max3450
- RPMs Min3450
- Service Factor1.65
- Shaft DesignThreaded
- Shaft Diameter0.625 inch
- Shaft Material303 Stainless Steel
- Standards ApprovalsCSA Certified
- Voltage115V, 230V
- Commercial, Residential, or ProfessionalResidential
- Diameter5.625 inch
- Flange TypeSquare
- Motor Capacitor TypeStart
- UPC Code786674031143
