Carvin

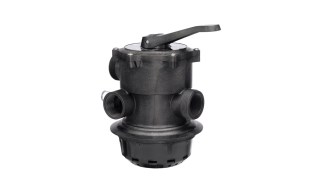

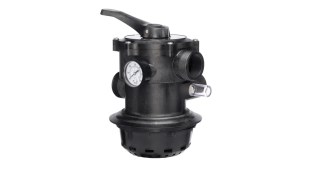

DVK-7C+ 1.5" 7‐Way Clamp Style Dial Valve with Union
Product #:LDP-06-1000
Mfg. Part #:39263035K
Carvin DVK-7C+ 39263035K 1.5" 7‐Way Clamp Style Dial Valve with Union
Carvin
DVK-7C+ 1.5" 7‐Way Clamp Style Dial Valve with Union
Product #:LDP-06-1000
Mfg. Part #:39263035K
EA
Description
Carvin offers a comprehensive selection of high-quality pool equipment and components, carefully selected to meet the needs of professional retailers, contractors and distributors. Their extensive product range ensures reliable performance, long-term durability, and efficient supply to support your business operations.
Documents
No documents available
Branch Availability
content loaded
Specifications
- BrandCarvin
- Shipping Dimensions0.01 x 0.01 x 0.01 inch
- ChannelNone
- Each Product Weight3 pound
- Minimum Sell Quantity1
- Warranty - General1 years

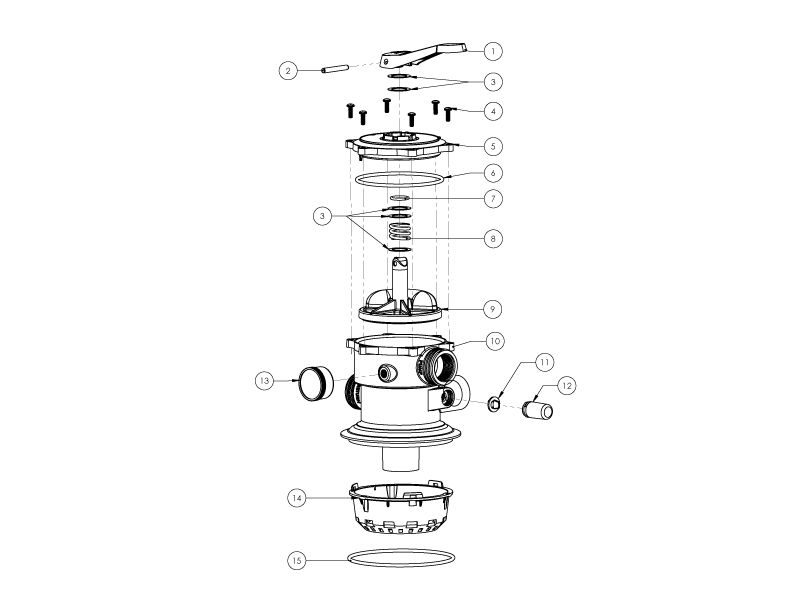

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
Handle
AAA-56-7993
39255302R
Product #: AAA-56-7993
Mfg #: Handle
2
2
Dowel Pin SS
14225502R
Product #:
Mfg #: Dowel Pin SS
3
3
Washer SS 11/32 x 1 1/2 x 11/32" (2/bag)
14383301R2
Product #:
Mfg #: Washer SS 11/32 x 1 1/2 x 11/32" (2/bag)
4
4
PH MS Pan 1/4 - 20 x 3/4 PO (6/bag)
14172209R6
Product #:
Mfg #: PH MS Pan 1/4 - 20 x 3/4 PO (6/bag)
5
5
Cover
39262606R
Product #:
Mfg #: Cover
6
6
O-ring 5 1/2' x 5 7/8' x 0.210" N
47035708R
Product #:
Mfg #: O-ring 5 1/2' x 5 7/8' x 0.210" N
7
7
O-ring 1' x 1'-1/4 x 1/8' N
47021448R
Product #:
Mfg #: O-ring 1' x 1'-1/4 x 1/8' N
8
8
Spring
RCS-70-1000
22358709R
Product #: RCS-70-1000
Mfg #: Spring
9
9
Diverter Assembly
39068705R
Product #:
Mfg #: Diverter Assembly
10
10
DVK-7C+ Dial Valve Body with Inserts
39262905R
Product #:
Mfg #: DVK-7C+ Dial Valve Body with Inserts
11
11
Sight Glass Gasket
13038203R
Product #:
Mfg #: Sight Glass Gasket
12
12
Sight Glass
23257702R
Product #:
Mfg #: Sight Glass
13
13
Pressure Gauge
91934182R
Product #:
Mfg #: Pressure Gauge
14
14
Deflector Snap Basket
43281146R
Product #:
Mfg #: Deflector Snap Basket
15
15
O-ring 6.750' x 7.125' x 0.1875' N
47036447R
Product #:
Mfg #: O-ring 6.750' x 7.125' x 0.1875' N
Wholegoods
There are no wholegoods available.
