24" Splash Sand Filter with 7-Way Dial Valve

Product #:JAC-05-1002

Mfg. Part #:94089224


Splash 94089224 24" SS-240-7C Sand Filter with 7-Way Dial Valve

24" Splash Sand Filter with 7-Way Dial Valve

Product #:JAC-05-1002

Mfg. Part #:94089224

Description

94089224 Splash 24" Sand Filter, 7 Way Dial Valve is engineered to direct water evenly across the entire surface of the sand without sand migration or channeling. Offers blow molded tank with deep high capacity sand bed.

Documents

Feature Bullets

  • Seven way dial valve with inspection sight glass, automatic air relief and pressure gauge
  • Non-Corrosive resin clamp for simple installation and service of dial valve and filter components
  • Upper distribution system Integrated in the dial valve engineered to direct water evenly across the entire surface of the sand without sand migration or channeling
  • Blow Molded Tank with Deep High Capacity Sand Bed carries more debris and extends filter cycles
  • The tank is corrosion-resistant and UV-resistant.

    • Branch Availability

    content loaded

    Specifications

    • ApplicationAbove Ground, Inground, Pool
    • Commercial, Residential, or ProfessionalResidential
    • Each Product Weight0 pound
    • Filtration Area3.1 square feet
    • Minimum Sell Quantity1
    • Normal Start Up Pressure50 pounds per square inch
    • Sand Required250 pound
    • Turnover 6hrs28080 gallon
    • Turnover 8hrs37440 gallon

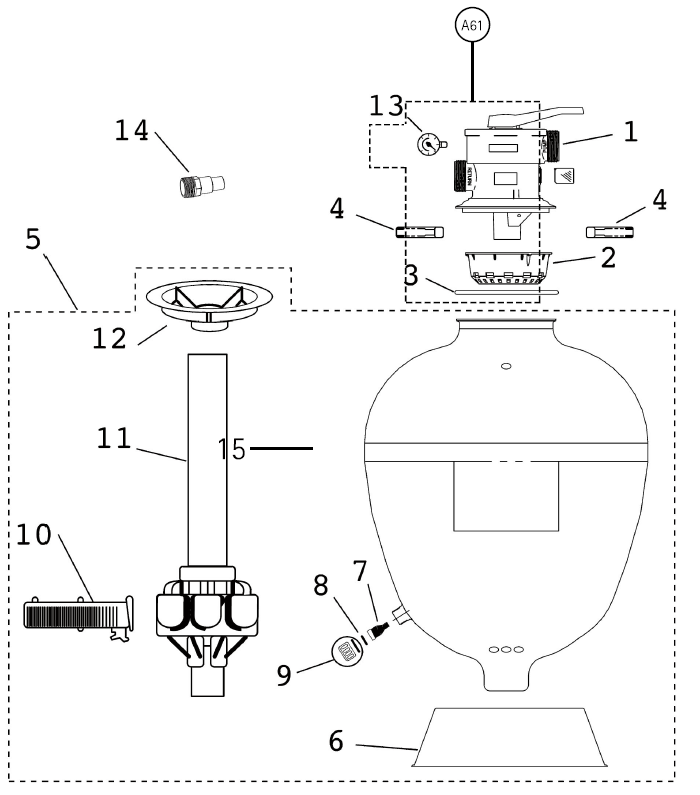

    Parts & Schematics

    content loaded
    Mfg #
    Product #
    Description
    Notes
    1
    1
    39-2630-20-K
    7-Positions Dial Valve With O-Ring
    Product #:
    Mfg #: 39-2630-20-K
    2
    2
    43-2811-45-K
    Deflector Basket With Screws
    Product #:
    Mfg #: 43-2811-45-K
    3
    3
    47-0364-47-R
    O-Ring/BN
    Product #:
    Mfg #: 47-0364-47-R
    4
    4
    85-8139-03-K
    V-Band Resin Clamp With Bolts
    Product #:
    Mfg #: 85-8139-03-K
    6
    6
    12-1121-08
    Filter Base
    Product #:
    Mfg #: 12-1121-08
    7
    7
    85-8533-00-R
    JAC-051-9749
    Drain Nozzle
    Product #: JAC-051-9749
    Mfg #: 85-8533-00-R
    8
    8
    14255202R
    JAC-251-9725
    Drain Nozzle Retainer for Laser & Sandstorm Filters
    Product #: JAC-251-9725
    Mfg #: 14255202R
    9
    9
    85-8263-00-R
    Drain Cap With Gasket
    Product #:
    Mfg #: 85-8263-00-R
    9
    9
    85-8263-00-R20
    Drain Cap With Gasket
    Product #:
    Mfg #: 85-8263-00-R20
    Notes:
    20 per bag
    10
    10
    85-5312-03-R8
    Lateral Kit Snap Fit
    Product #:
    Mfg #: 85-5312-03-R8
    Notes:
    8 per bag
    11
    11
    42-3882-07-R
    SS160 Standpipe Assy Snap-Fit
    Product #:
    Mfg #: 42-3882-07-R
    11
    11
    42-3883-06-R
    SS185 Standpipe Assy Snap-Fit
    Product #:
    Mfg #: 42-3883-06-R
    11
    11
    42-3884-05-R
    SS240 Standpipe Assy Snap-Fit
    Product #:
    Mfg #: 42-3884-05-R
    12
    12
    22-3639-07-R
    Sand Fill Cover
    Product #:
    Mfg #: 22-3639-07-R
    13
    13
    9193-4182-R
    Pressure Gauge 0-60 psi
    Product #:
    Mfg #: 9193-4182-R
