Makita DC4001 AC Power Supply and Charger for PDC1200, PDC1500
EA
Description
The Makita AC Power Supply and Charger is for use with the Makita PDC1200 ConnectX™ 1,200Wh Portable Backpack Power Supply. It allows for extended run time to Makita 36V Connect X tools and equipment including the 36V ConnectX™ Brushless 21" Self-Propelled Commercial Lawn Mower (CML01Z), the 36V ConnectX™ Brushless Blower (CBU01Z), and the 36V ConnectX™ Brushless String Trimmer (CRU03Z). It optimizes battery life by actively controlling current, voltage, and temperature. The AC Power Supply and Charger has a built-in fan that circulates air through the charger during the charging process to cool the charger for faster charge time.
Documents
Feature Bullets
Branch Availability
content loaded
Specifications
- BrandMakita
- ChannelMaintenance Channel
- Shipping Dimensions7.25 x 12.75 x 4 inch
- Each Product Weight3.35 pound
- Minimum Sell Quantity1
- UPC Code088381570695
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

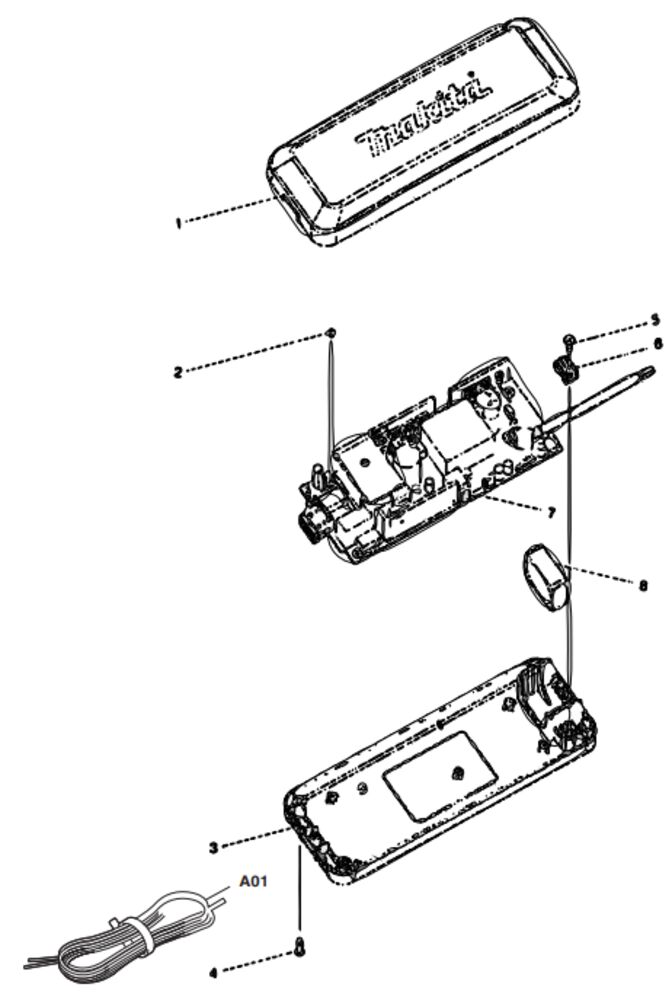

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
TC00000113
Upper Case
Product #:
Mfg #: TC00000113
2
2
TC00000114
Tapping Screw 3X6
Product #:
Mfg #: TC00000114
3
3
TC00000115
Under Case
Product #:
Mfg #: TC00000115
4
4
TC00000116
Tapping Screw 4X20
Product #:
Mfg #: TC00000116
5
5
TC00000117
Tapping Screw 4X18
Product #:
Mfg #: TC00000117
6
6
TC00000118
Cord Clamp
Product #:
Mfg #: TC00000118
7
7
TC00000205
PCBA
Product #:
Mfg #: TC00000205
8
8
TC00000120
Fan
Product #:
Mfg #: TC00000120
A01
A01
667244-1
Power Supply Cord
Product #:
Mfg #: 667244-1
Wholegoods
There are no wholegoods available.
