RUUD
AVIA P-D264A-EP-C Liquid Propane Low NOx Pool and Spa Heater 264K BTU
Product #:RUD-15-0004
Mfg. Part #:018098
- This product is obsolete.
- The superceded product was not found.
RUUD 018098 AVIA P-D264A-EP-C Liquid Propane Low NOx Pool and Spa Heater 264K BTU
RUUD
AVIA P-D264A-EP-C Liquid Propane Low NOx Pool and Spa Heater 264K BTU
Product #:RUD-15-0004
Mfg. Part #:018098
Description
Managing your pool heater has never been easier or smarter. AVIA™ is built with an innovative Wi-Fi enabled control system that allows you to manage your pool heater and ecosystem through its easy to use touch control interface. No need for a separate control panel to manage your pool heater and ecosystem, AVIA™ does it All.
Branch Availability
content loaded
Specifications
- BrandRUUD
- ApplicationPool, Spa
- Shipping Dimensions53 x 39 x 38 inch
- ColorMaroon, Gray
- Commercial, Residential, or ProfessionalResidential
- Each Product Weight203 pound
- FinishMatte
- Frequency Rating (Hz)60
- Includes(2) 2" CPVC Tailpiece, (2) 2" CPVC Ring Nut, (2) O-rings, (1) 120V Blower Adapter, (1) 3-Wire Remote Harness, (1) Auxiliary Harness, (1) Raymote Quick Start Guide
- Minimum Sell Quantity1
- Pallet Quantity4
- Product Depth23.22 inch
- Product Height30.38 inch
- Product Weight135 pound
- Product Width32.61 inch
- Standards ApprovalsCSA Certified, ANSI Certified
- Voltage120V, 240V
- UPC Code840891047361
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

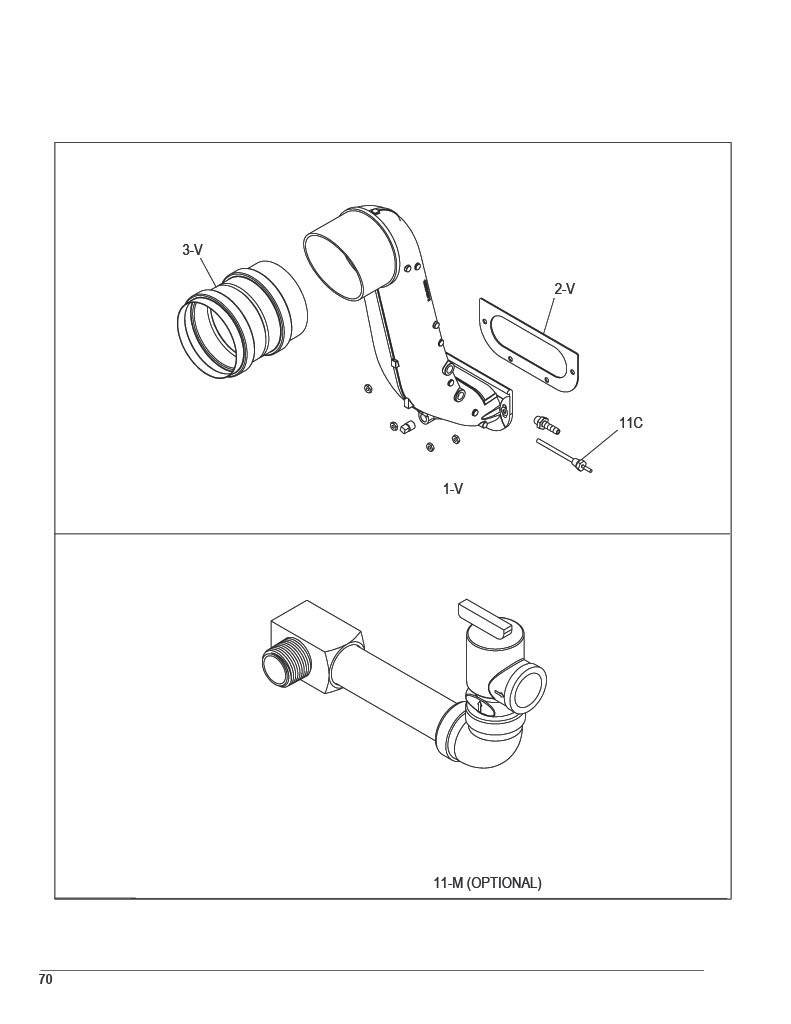

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1-B
1-B
018873F
Kit-Burner
Product #:
Mfg #: 018873F
2-B
2-B
018878F
Kit-Burner Gasket
Product #:
Mfg #: 018878F
1-C
1-C
018853F
Kit-Temp Sensor Limit
Product #:
Mfg #: 018853F
2-C
2-C
018857F
Kit-Ignition Board
Product #:
Mfg #: 018857F
3-C
3-C
018858F
Kit-Transformer 120/240/24V
Product #:
Mfg #: 018858F
4-C
4-C
018928F
Kit-Pressure Vent
Product #:
Mfg #: 018928F
5-C
5-C
018929F
Kit-Pressure Air
Product #:
Mfg #: 018929F
6-C
6-C
018930F
Kit-Pressure Differential
Product #:
Mfg #: 018930F
7-C
7-C
019042F
Kit-Temperature Inlet Sensor
Product #:
Mfg #: 019042F
8-C
8-C
019043F
Kit-Temperature Outlet Sensor
Product #:
Mfg #: 019043F
9-C
9-C
019044F
Kit-High Limit 2-HL2-Surface Mount
Product #:
Mfg #: 019044F
10-C
10-C
019045F
Kit-High Limit 1-HL1-Surface Mount
Product #:
Mfg #: 019045F
11-C
11-C
019046F
Kit-Temperature Vent Sensor
Product #:
Mfg #: 019046F
1-F
1-F
018865F
Kit-Blower Comb Air
Product #:
Mfg #: 018865F
2-F
2-F
018898F
Kit-Blower Gasket
Product #:
Mfg #: 018898F
Wholegoods
There are no wholegoods available.
