Intex 28645EG Krystal Clear Sand Filter Pump with GFCI
Description
Intex 28645EG Krystal Clear Sand Filter Pump with GFCI has a flow rate of 2,100 gallons per hour, creating a system flow rate of 1,600 gallons per hour and making it a perfect fit for above ground pools up to 18 feet in diameter (or 24x12 rectangular). The all natural sand provides excellent water filtration as the 6-function control valve allows the pool owner to: filter, backwash and rinse, recirculate, drain and close the system.
Documents
No documents available
Branch Availability
content loaded
Specifications
- BrandIntex
- ApplicationAbove Ground, Pool
- Shipping Dimensions23.62 x 15.75 x 22.83 inch
- Horsepower0.3 horse power
- Voltage110V, 120V
- ChannelNone
- Each Product Weight39.4 pound
- Flow Rate Max2100 gal/hr
- Flow Rate Min2100 gal/hr
- Master Carton Quantity1
- Minimum Sell Quantity1
- Pallet Quantity1
- UPC Code078257306503

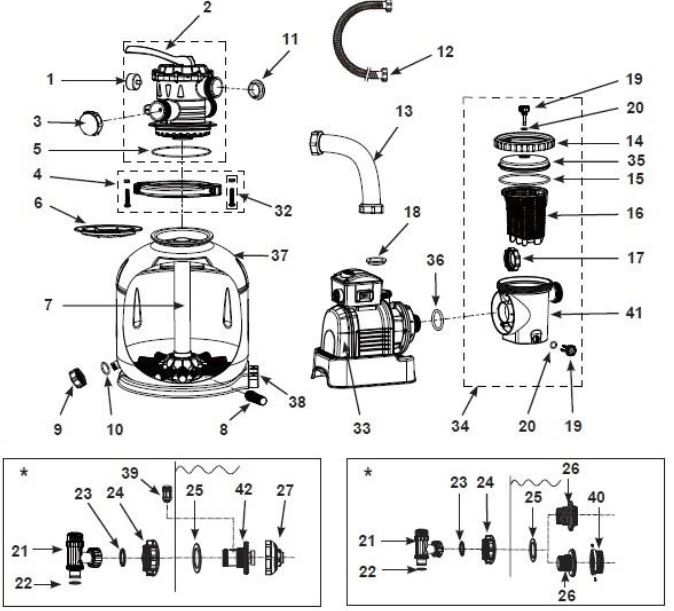

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
11411
PRESSURE GAUGE FOR 14 SAND FILTER PUMP AND SAND FILTER COMBO
Product #:
Mfg #: 11411
2
2
11378
6-WAY VALVE SET FOR 12 & 14 SAND FILTER PUMP COMBO
Product #:
Mfg #: 11378
3
3
11131
ELECTROLYTIC CELL COVER/SAND FILTER PUMP DRAIN OUTLET COVER
Product #:
Mfg #: 11131
4
4
11380
CLAMP WITH SCREWS FOR 12 AND 14 SAND FILTER PUMP AND COMBO
Product #:
Mfg #: 11380
5
5
11379
TANK O-RING FOR 12& 14 SAND FILTER PUMPS AND COMBO
Product #:
Mfg #: 11379
6
6
11382
SAND SHIELD FOR 14 SAND FILTER PUMP AND SAND FILTER PUMP & SALTWATER SYSTEM CG
Product #:
Mfg #: 11382
7
7
11815
CENTER PIPE HUB FOR 12 SAND FILTER PUMP
Product #:
Mfg #: 11815
8
8
11484
LATERAL FOR 12 SAND FILTER PUMP
Product #:
Mfg #: 11484
9
9
11456
DRAIN VALVE CAP FOR SAND FILTER PUMP AND COMBO
Product #:
Mfg #: 11456
10
10
11385
DRAIN VALVE O-RING FOR SAND FILTER PUMP AND COMBO
Product #:
Mfg #: 11385
11
11
11228
L-SHAPE O-RING
Product #:
Mfg #: 11228
12
12
11009
1.5M X DIA 1-1/2 PUMP HOSE WITH NUTS
Product #:
Mfg #: 11009
13
13
11820
INTERCONNECTING HOSE FOR 12 SAND FILTER PUMP
Product #:
Mfg #: 11820
14
14
11822
LEAF TRAP NUT
Product #:
Mfg #: 11822
15
15
11824
LEAF TRAP O-RING FOR 12� SAND FILTER PUMP
Product #:
Mfg #: 11824
