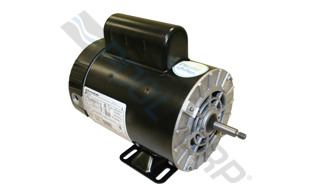

Century® B2233 2 Speed Spa Motor; 2HP, 3450/1725 RPM, 230V, 56Y, Threaded Shaft
Description
The ODP Thru-Bolt Spa Motor has an E-Plus® New Centurion design. The design gives this 2 speed motor an energy efficient bonus. Update your motor today to meet California Energy Commission Appliance Regulations.
Branch Availability
content loaded
Specifications
- BrandCentury
- Ambient Temperature50 degrees Celsius
- Shipping Dimensions18 x 11 x 9.5 inch
- Amps High Speed7.4
- Amps Low Speed1.4
- ApplicationPool
- Bearing TypeBall
- ColorBlack
- Duty CycleContinuous
- Each Product Weight30.6 pound
- Efficiency GroupStandard
- Frequency Rating (Hz)60
- Horsepower2 horse power
- Insulation ClassF
- Master Carton Quantity1
- Minimum Sell Quantity1
- Motor Enclosure TypeOpen Drip Proof
- Motor Frame Size56Y
- Motor Shaft RotationCounterclockwise Pulley End
- Motor Speed2-Speed
- Motor Thermal ProtectionAutomatic Reset
- Pallet Quantity30
- PhaseSingle
- RPMs Max3450
- RPMs Min1725
- Shaft DesignThreaded
- Shaft Diameter0.5 inch
- Shaft Length2.375 inch
- Shaft Material303 Stainless Steel
- Standards ApprovalsCSA Certified
- Voltage230V
- Commercial, Residential, or ProfessionalResidential
- Diameter6.5 inch
- Flange MaterialAluminum
- Frame MaterialRolled Steel
- Green or Energy Efficient ProductTrue
- Motor Capacitor TypeStart, Run
- Shaft Height3.5 inch
- UPC Code786674054807
