- This product is obsolete.
- The superceded product was not found.

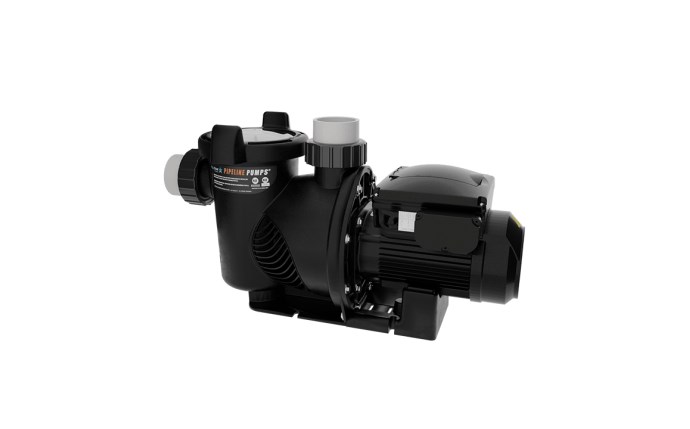

AquaStar Pool Products PLP150S Pipeline Pump 1.5HP Smart Model
Description
AquaStar Pool Products PLP150S Pipeline Pump 1.5HP Smart Model is a high-efficiency full featured pump. This pump is equipped with a totally enclosed fan to keep the mechanism cool and prevent overheating. Inside the fan is a rubber insert that promotes noise reduction for a quieter pump.
Branch Availability
content loaded
Specifications
- BrandAquaStar Pool Products
- ApplicationPool
- Shipping Dimensions27 x 12 x 16 inch
- Standards ApprovalsNSF Certified
- Connection Size 12.5 inch
- Connection Size 1 FITSocket
- Connection Size 22 inch
- Connection Size 2 FITSocket
- Each Product Weight44 pound
- Flow Rate Max140 gal/min
- Flow Rate Min38 gal/min
- Minimum Sell Quantity1
- Motor SpeedVariable
- Pallet Quantity16
- PhaseSingle
- Power Rating1500 watt
- RPMs Max3400
- RPMs Min800
- Thrust HP1.5
- Weighted Energy Factor (WEF)7.2
- UPC Code0883612101606
WARNING: The following product(s) can expose you to chemicals which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov

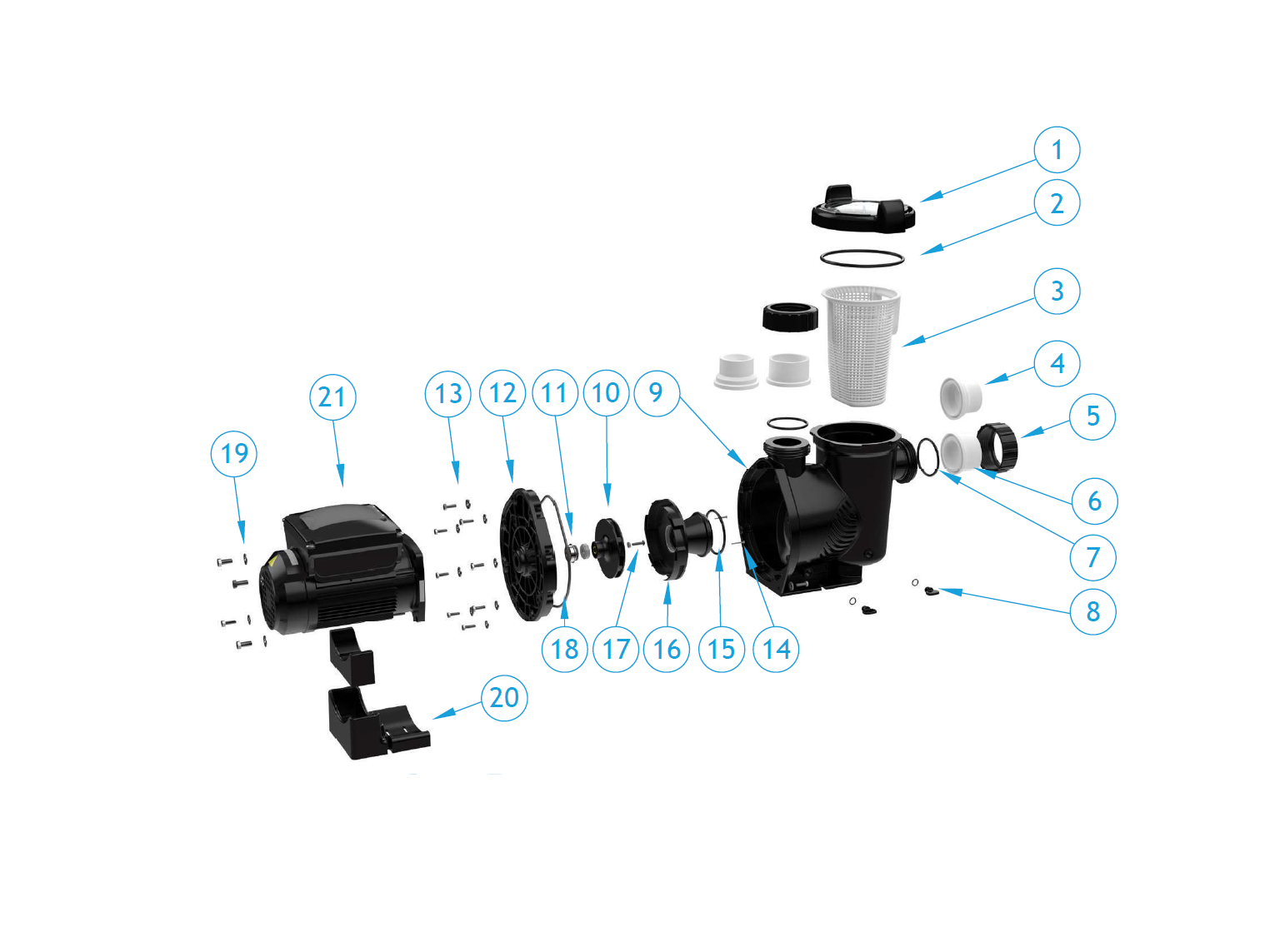

Parts & Schematics
content loaded
Mfg #
Product #
Description
Notes
1
1
AP1101
Pump Locking Ring and Cover
Product #:
Mfg #: AP1101
2
2
O-RING-439-EPDM
O-Ring #439 EPDM
Product #:
Mfg #: O-RING-439-EPDM
3
4
4
AP1102
API-56-1009
Product #: API-56-1009
Mfg #: AP1102
Notes:
Quantity 25
5
AP1103
Nut Union 2.5" Socket
Product #:
Mfg #: AP1103
Notes:
Quantity 26
6
AP1104
Pump Union 2.5" Socket
Product #:
Mfg #: AP1104
Notes:
Quantity 27
7
O-RING-338-EPDM
O-Ring #338 EPDM
Product #:
Mfg #: O-RING-338-EPDM
8
8
AP1105
Drain Plug and O-Ring #014 A EPDM
Product #:
Mfg #: AP1105
9
9
AP1005
Pump Housing
Product #:
Mfg #: AP1005
10
10
AP1036
Impeller Assembly 1.5HP
Product #:
Mfg #: AP1036
11
11
AP1051
Seal Ceramic PS-3865R
Product #:
Mfg #: AP1051
12
12
AP1006
Seal Plate Pump
Product #:
Mfg #: AP1006
13
13
AP1106
Screw 1/4-20 x 7/8" LG Hex Head 18-8-SS and Washer 3/4"OD x 5/16"ID USS 18-8-SS
Product #:
Mfg #: AP1106
Notes:
Quantity 814
14
AP1107
Screw 4-40 x 1-1/8 LG Pan Head Phill 316SS
Product #:
Mfg #: AP1107
Notes:
Quantity 215
15
O-RING-341-EPDM
O-Ring #341 EPDM
Product #:
Mfg #: O-RING-341-EPDM
Wholegoods
There are no wholegoods available.
